Main Usage
Our BSU universal crusher is widely applied in industries of medical,chemical,foodstuff etc.
for example,sugar,salt,herbs,spices,pharmaceutical products.
Working Method

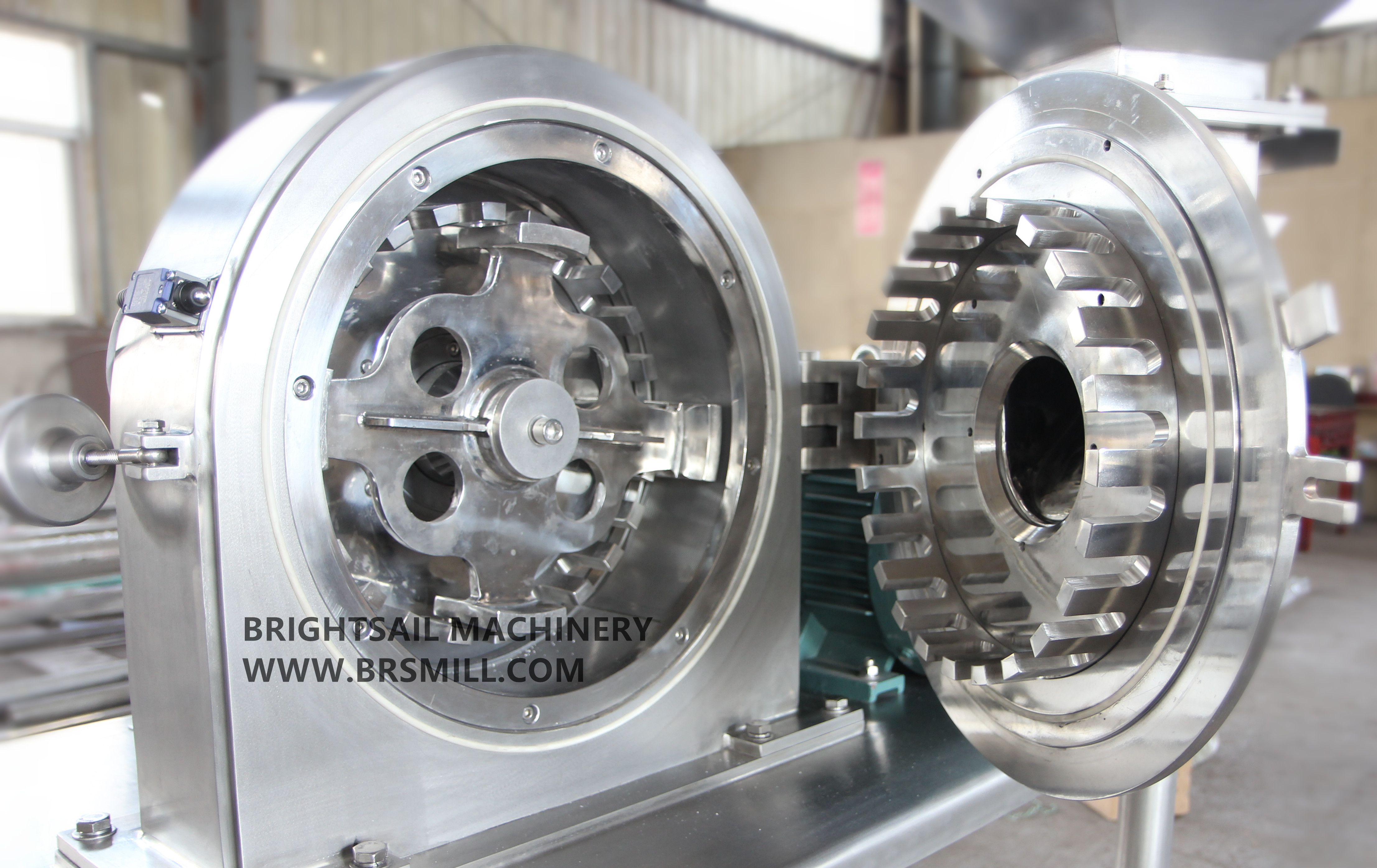

It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials.
And there is a sieve inside the mill chamber to adjust the powder size.
Besides, the whole machine is made of stainless steel.
As a result,it conforms to the state standard and the GMP requirements.
Advantages
1. Simple structure in linear type ,easy in installation and easy to maintain.
2. With water cooling jacket around grind chamber.
3. We have different kinds of knife to let you choose for different kinds of material.
Technical Data
Tenical Data of BSU hammer mill
Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
Size of input granules(mm) | ＜ 6 | ＜ 10 | ＜ 10 | ＜ 10 |
Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
Power(kw) | 4 | 7.5 | 11 | 22 |
Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
Overall size(L×W×H)(mm) | 550*550*1200 | 650*650*1520 | 780*780*1600 | 950×950×2150 |
Weight(kg) | 230 | 330 | 430 | 900 |
video
This is video of our BSU-20 pin mill, we are grinding rice with this machine in the video below.
If you are looking for high speed pin mill, we also provide it.
The high speed pin mill is this type.
BSZ high speed pin mill doesn't need screen in mill chamber.
