Introduction

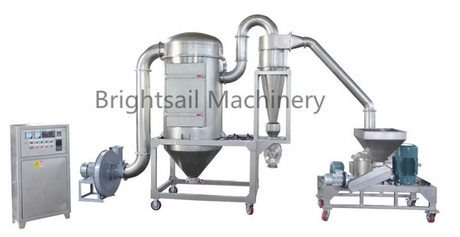

Introducing the BSP Ultrafine Powder Making Machine, the perfect solution for achieving ultra-fine powder grinding. Designed with precision and efficiency in mind, this machine boasts the BSP Air Classifier Mill, a powerful grinder capable of producing the finest powders with ease.
Crafted with high-quality materials and cutting-edge technology, the BSP Ultrafine Powder Making Machine is built for durability and longevity. Its advanced air classifier system ensures that every particle is finely ground to the desired size, leaving no room for inconsistency or error.
With its user-friendly interface and intuitive controls, this machine is easy to operate and maintain, making it an ideal choice for any professional setting. Whether you're in the food, pharmaceutical, or chemical industry, the BSP Ultrafine Powder Making Machine is the perfect addition to your production line.
Invest in the BSP Ultrafine Powder Making Machine today and experience the unparalleled precision and efficiency that only this machine can offer. Trust us, your customers will notice the difference in the quality of your products.
Brightsail Air Classifier Millis can make 60~2500 mesh based on different raw material, for example:
For sugar and salt grinding, the output size can be 100~1000 mesh fine powder. For spice powder like turmeric, ginger and garlic grinding, the output size can be 60~400 mesh fine powder.
For herbal leaf grinding like licorice root, moringa leaf, green tea leaf, the output size can be 60~500 mesh.
For chemical powder grinding like Lithium Stearate, Zinc Stearate, tale, the output size can be 200~10000 mesh based on customer's requests.
Work Method & video
There are two types of knives, hammer type and pin type.Hammer type is standard knife type, which is suitable for various kinds of raw material, spice, chemical, foods, herbs, grains...
Pin type is customized for crystal material grinding like sugar, salt...with high productivity.
Two types classifier wheel positions:
1) Classifier-lower type: standard type adopts on model BSP-250, BSP-350, BSP-450, and BSP-500.
2) Classifier-upper type: easier cleaning, better stability of mechanical properties and more expensive compared with classifier -lower type.
We recommend the most suitable type based on the characteristic of raw materials, and customers' requirements.
IMPORTANT FEATURES of our Brightsail air classifier mill ACM grinder classifying mill :
1. By changing the air volume and classifying rotor speed, the particle size can be easily adjusted. This allows the operator to change product sizes during operation as well.
2. Grinding and Classifying in one machine, Compact footprint
3. Cool and gentle grinding by using water cooling system or equipped with a industrial chiller
4. Steep particle size distributions, Sharp top cut control
5. Easily adjustable cut point, Easy to clean and maintain
6. High availability, Low noise emission, Low specific energy consumption
7. Pressure-shock resistant and wear-protected, Suitable for combined grinding and drying
Technical Data
| Model | BSP-250 | BSP-350 | BSP-450 | BSP-500 | BSP-750 | BSP-900 | BSP-1000 |
| Capacity (kg/h) | 10-100 | 20-200 | 40-500 | 50-800 | 120-1800 | 800-2500 | 1000-3600 |
| Input size (mm) | ＜ 8 | ＜ 15 | ＜ 15 | ＜ 15 | ＜ 15 | ＜ 20 | ＜ 20 |
| Powder fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Crush motor(kw) | 5.5 | 15 | 18.5/22 | 30/37 | 55/75 | 90 | 110 |
| Classifier motor(kw) | 1.5 | 1.5 | 4 | 5.5 | 11 | 15 | 18.5 |
| Blower (kw) | 4 | 5.5 | 11 | 18.5 | 37 | 45 | 75 |
| Feed motor (kw) | 0.37 | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 | 2.2 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 |
| Speed of principle axis (rpm) | ~8400 | ~6500 | ~5600 | ~4400 | ~3100 | ~2450 | ~2450 |
| Grading impeller speed (rpm) | ~4000 | ~4000 | ~4000 | ~8500 | ~3000 | ~3000 | ~3000 |
Product Video
These videos are from our clients around the world.
They are using our BSP air classifying mill to produce different kinds of powder products.
FAQ
Q: What will be the lead time of the machine?
A: Usually,the lead time is 30 work days.
Q: How to install the machine?
A: We provide English electric diagram, and English manual.
99% clients can install the machine by themselves under our guidance.
Q: To get a detailed quote or to choose a suitable model, what buyer shall provide?
A: 1) raw material name?
2) capacity the buyer needs to produce? kg/hr
3) target powder size the buyer needs? like 20 mesh, 30mesh, 40mesh,60 mesh.....etc
Q: What is the warranty term?
A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.
Q: Does the machine have GMP certificate?
A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.
But our machine can be applied in food and pharmaceutical's production
