Product Introduction
Our BSZ pin mill machine can be used in food, pharmaceutical, chemical and other industries, mainly for pulverizing.
It is suitable for milling materials with high fat, oil or sugar into fine powder type.
Main Features
For common materials, such as spices, grains, crystal materials, etc, it's very suitable.
Our high speed wide chamber contraplex pin mill is very suitable for grinding seeds spices, like mustards seeds,cumin seeds, coriander seeds,black pepper,clove,nutmeg...etc
It can also grind cocoa nibs into cocoa liquor,and grind chemicals into fine powder
It can be used without a dust collecting system, just a single mill.
If you don’t want fine powder,a singe grind motor type pin mill is also optional. (for example if you need to make 60 mesh sugar powder.)
And for singe grind motor type pin mill, to save cost, too add a cyclone can be a simple dust remove method.
To make sure big capacity,automatic grinding, discharging and dust-free production,
A complete pin mill grinding unit is recommended.
Besides, pin mill can also be connected with liquid nitrogen, to make powder with much fat like nutmeg.
Some clients just connect liquid nitrogen to make more quality product;
For example, with liquid nitrogen connected,food powder’s smell,oil and nutrition will be preserved very well while grinding.
Technical Data

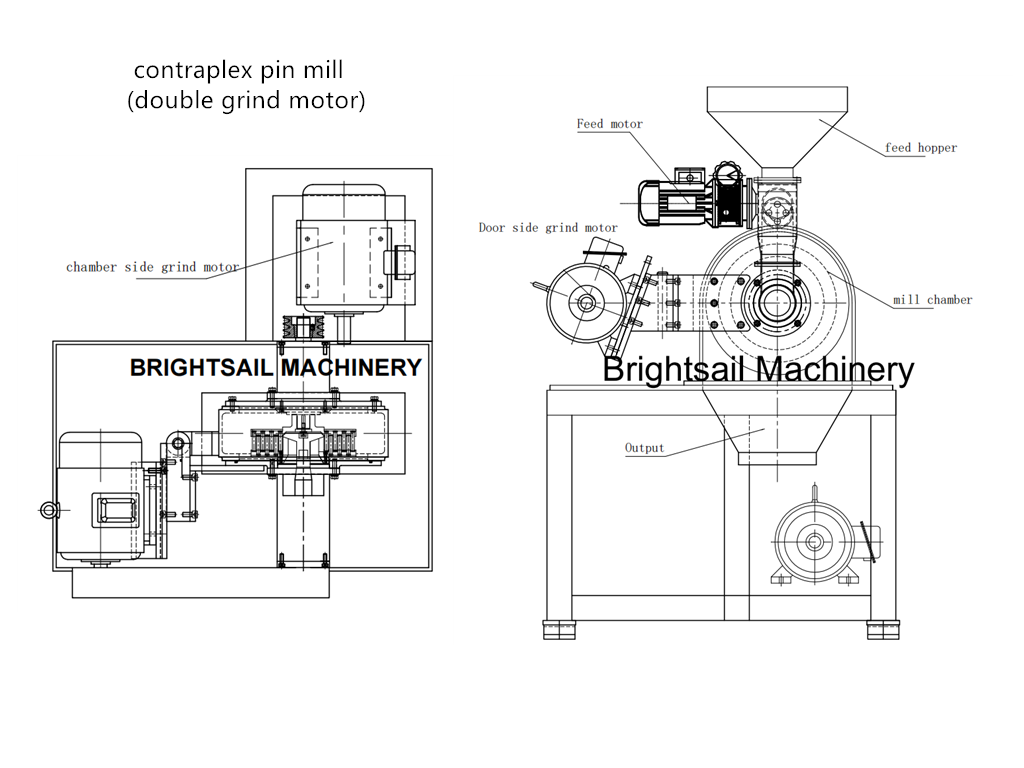

Model (this sheet is for contraplex type pin mill) | BSZ-350 | BSZ-450 | BSZ-550 | BSZ-630 |
Knife disc diameter (mm) | 350 | 450 | 550 | 630 |
Capacity (kg/hr) (capacity is affected a lot by raw material and target grinding size) | 60~1000 | 120~2000 | 300~3000 | 600~4500 |
Grind size （mesh） | 30 ~ 1000 mesh (grind effect is affected by raw materials a lot) | |||
Grind motor (KW) | 15KW+15KW | 22KW+22KW/30KW | 30KW+37KW | 55KW+55KW |
Rotor speed (rpm) (speed is adjustable by inverter) | 12000 | 9600 | 8400 | 6600 |
work video
This is video of our BSZ-450 pin mill machine for making sugar powder.
This is video of our BSZ-350 pin mill unit for grinding coffee bean powder.
This is video of our BSZ-350 wide chamber pin mill unit for grinding Mustard seed
This is video of our BSZ-350 wide chamber pin mill unit for grinding Coriander seed
FAQ
Q: Can the machine size be customized?
A: Yes, maybe we can. You shall tell us the room size of your factory, so we can adjust the design to fit in your space, we can try it.
Q: Can the machine's voltage be customized?
A: Yes, sure. Like 220V,400V, 480V, 600Hz....we can do it.
Q: Can the machine’s voltage be customized into single phase, and family use?
A: Most machines cannot, but some machine can, please contact us to check and confirm.
Q: What is the brand of the motors, inverters and electrical parts?
A: If customers need more cost-effective machine, we will recommend good quality Chinese brand. If customers have enough budget and want better parts, we will use Siemens,ABB,Schneider,WEG,SEW...etc
