Cinnamon Grinding Powder Making Machine

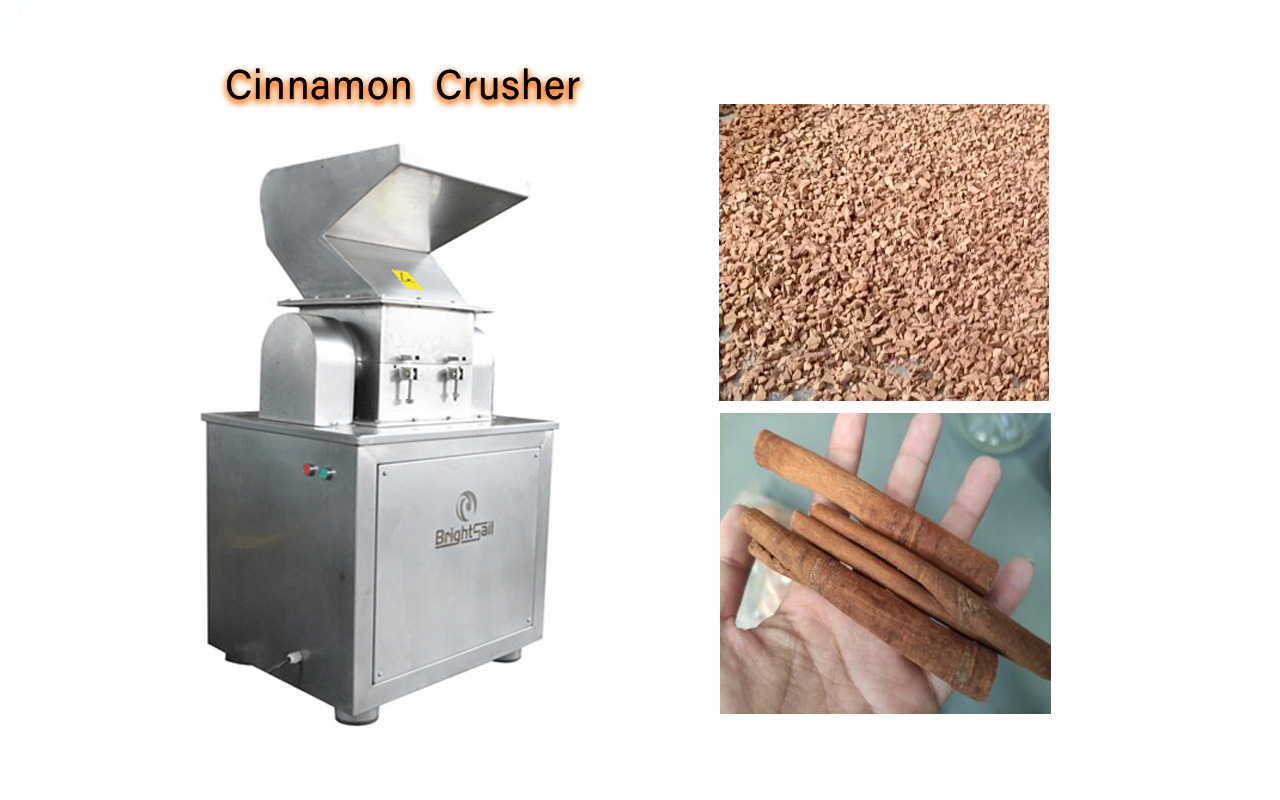

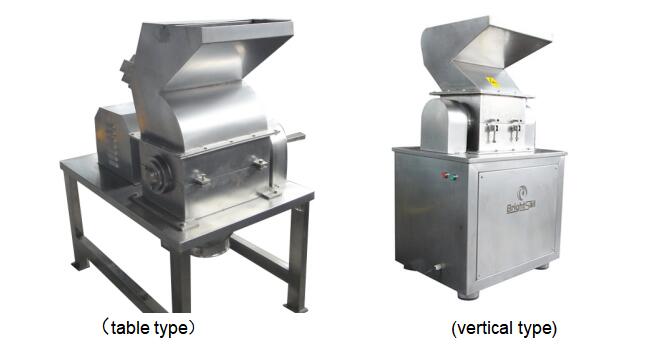

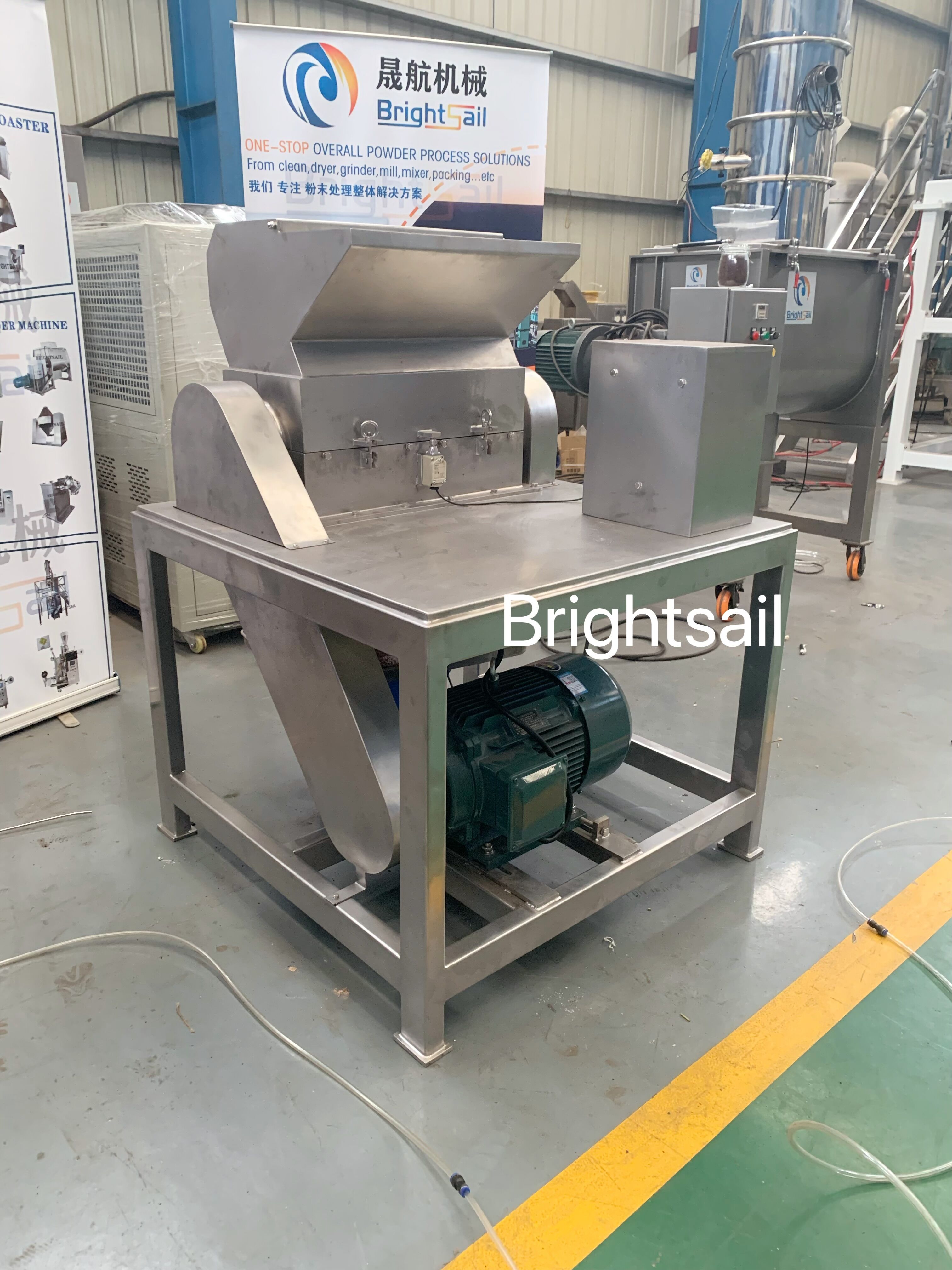

 BSC Machine For Cinnamon granules:

Our coarse crusher has two functions mainly:

(1)Crush raw materials into flakes or granules like ginger granules,chili flakes,tea granules,black pepper granules,biscuit flakes,herb granules...etc

(2)It is used as a primary crusher before grinding.

Application and work method of BSC  Machine For Cinnamon granules:

It’s applied in food,chemical and spice lines.

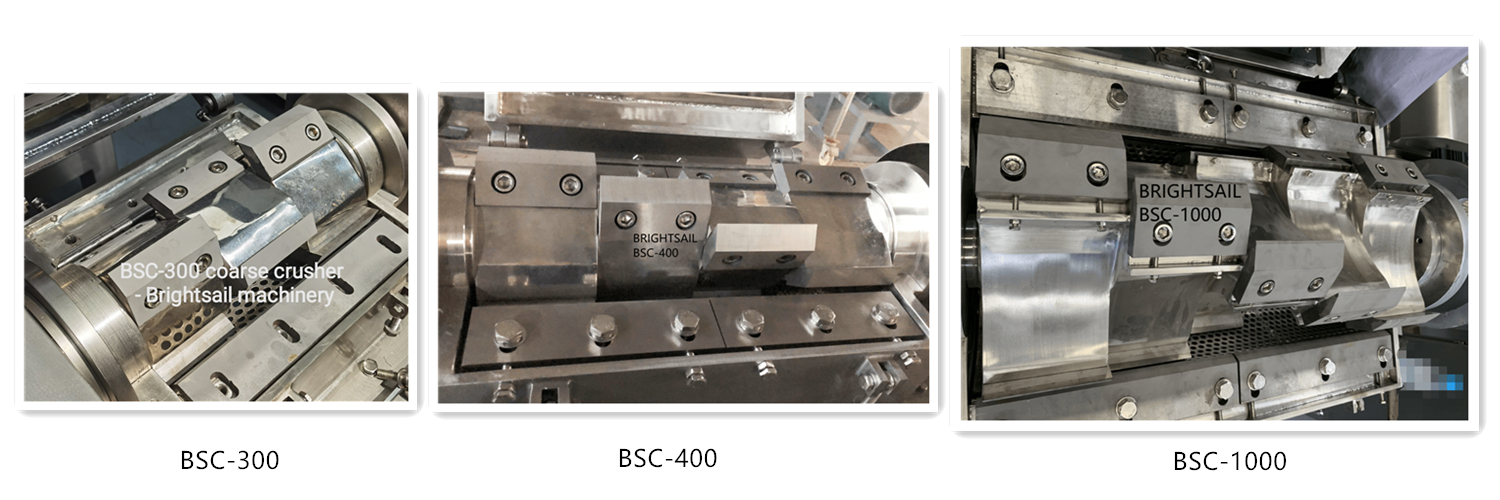

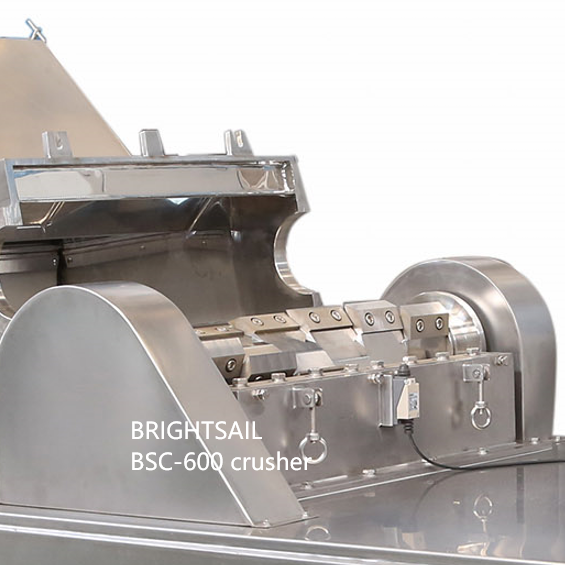

Raw material is fed into the crush chamber through the feed hopper,then crushed and cut by the fixed and rotating knives in the chamber, and flows to the exit automatically under the effect of rotating centrifugal force.

Technical Data:

Model	BSC-200	BSC-300	BSC-400	BSC-600	BSC-1000
Capacity(kg/hr)	80-300	100-800	200-1000	500-1500	1000-2500
Size of input granules(mm)	<100	<100	<100	<100	<100
Crushing Fineness(mm)	0.5-20	0.5-20	0.5-20	0.5-20	0.5-20
Rotor speed(rpm)	530	530	530	530	540
Motor power(KW)	3	5.5	7.5	11	15
Overall Size(L*W*H)(mm)	600*500*1228	720*700*1303	900*700*1306	1020*700*1306	1330*850*1826
Weight(Kg)	200	300	380	500	1000

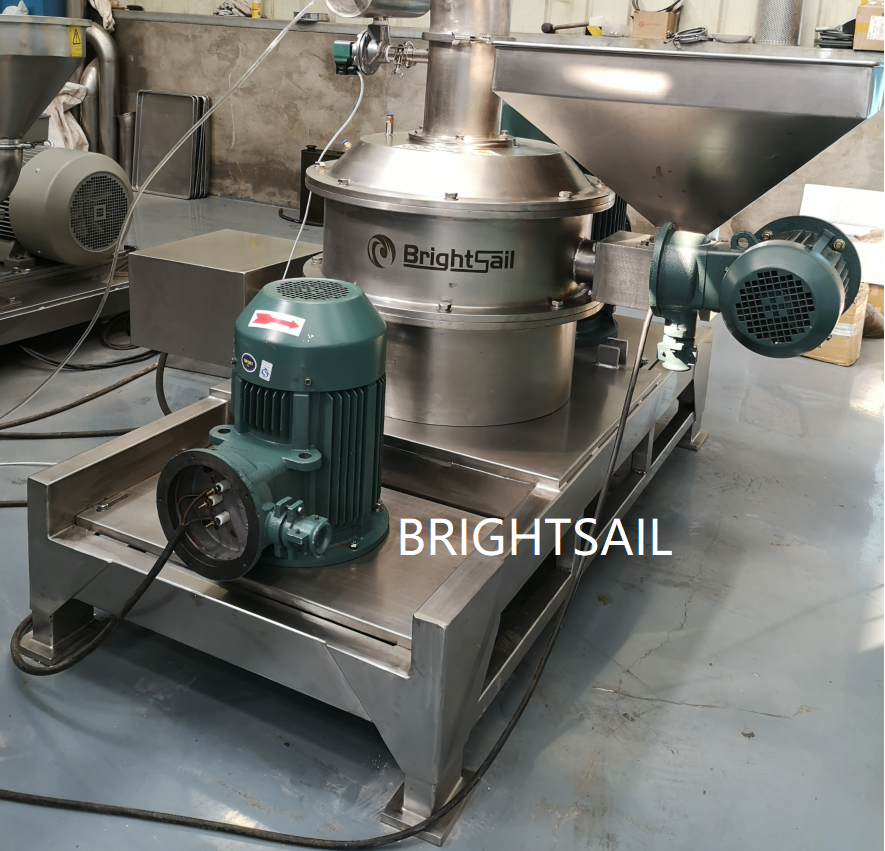

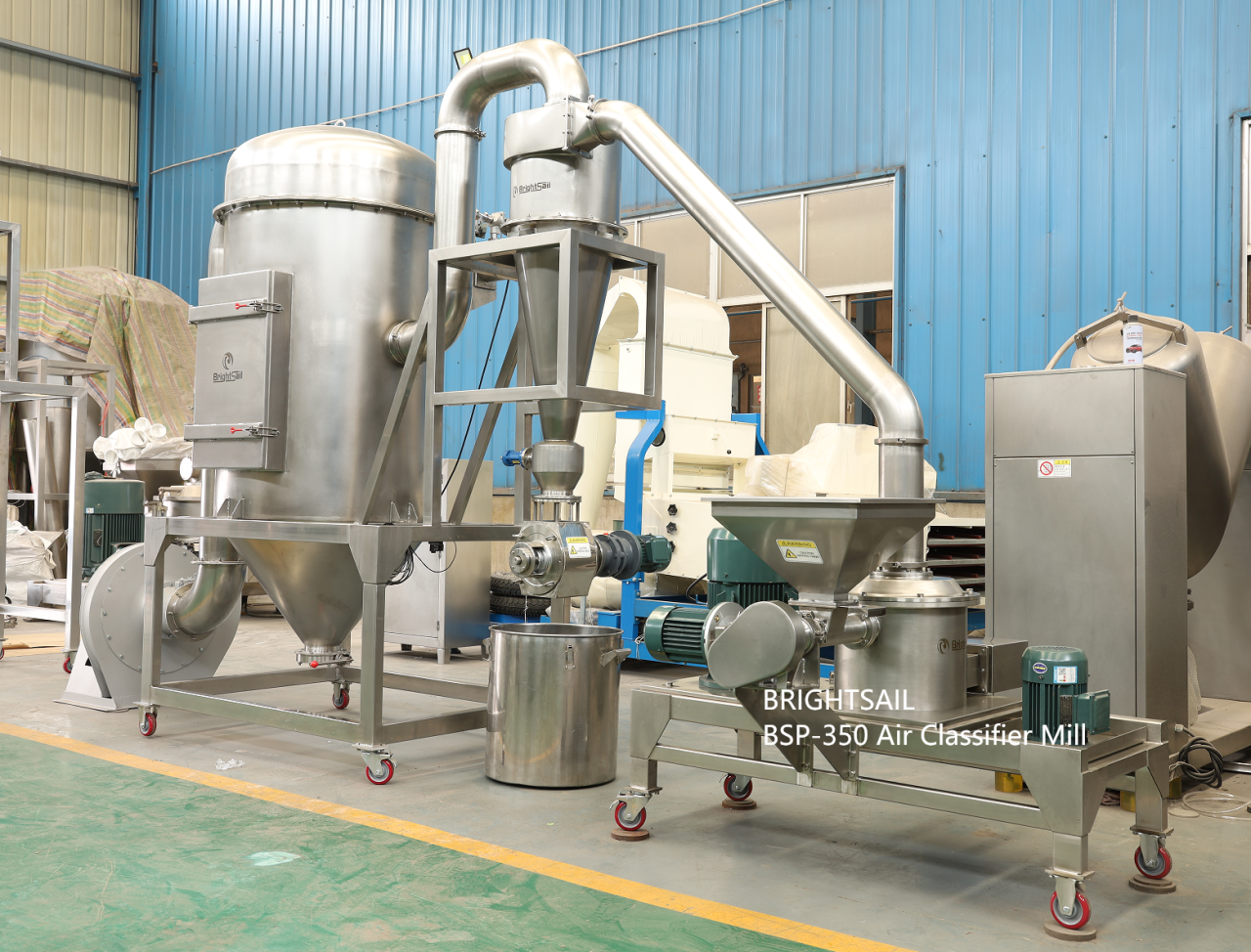

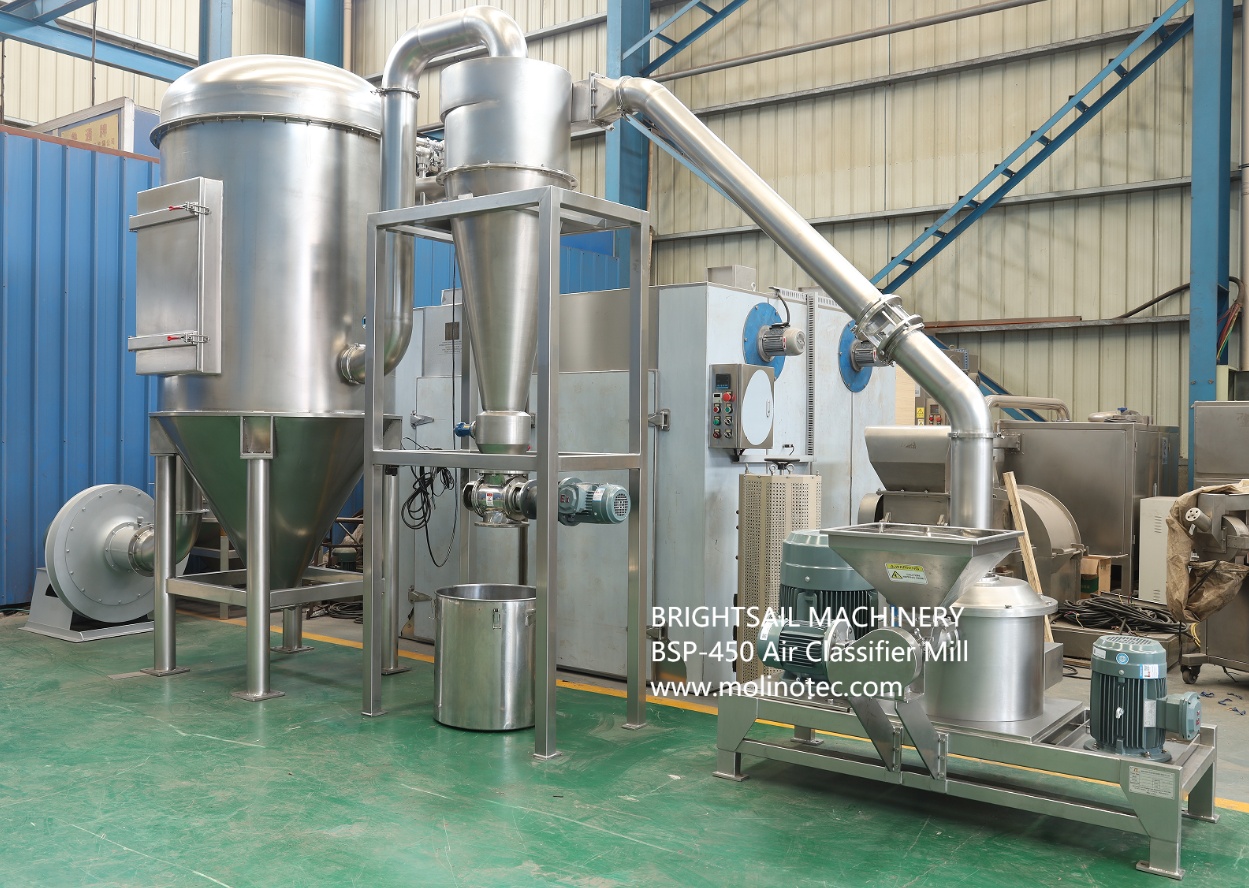

BSP Machine For Cinnamon Grinding Machine:

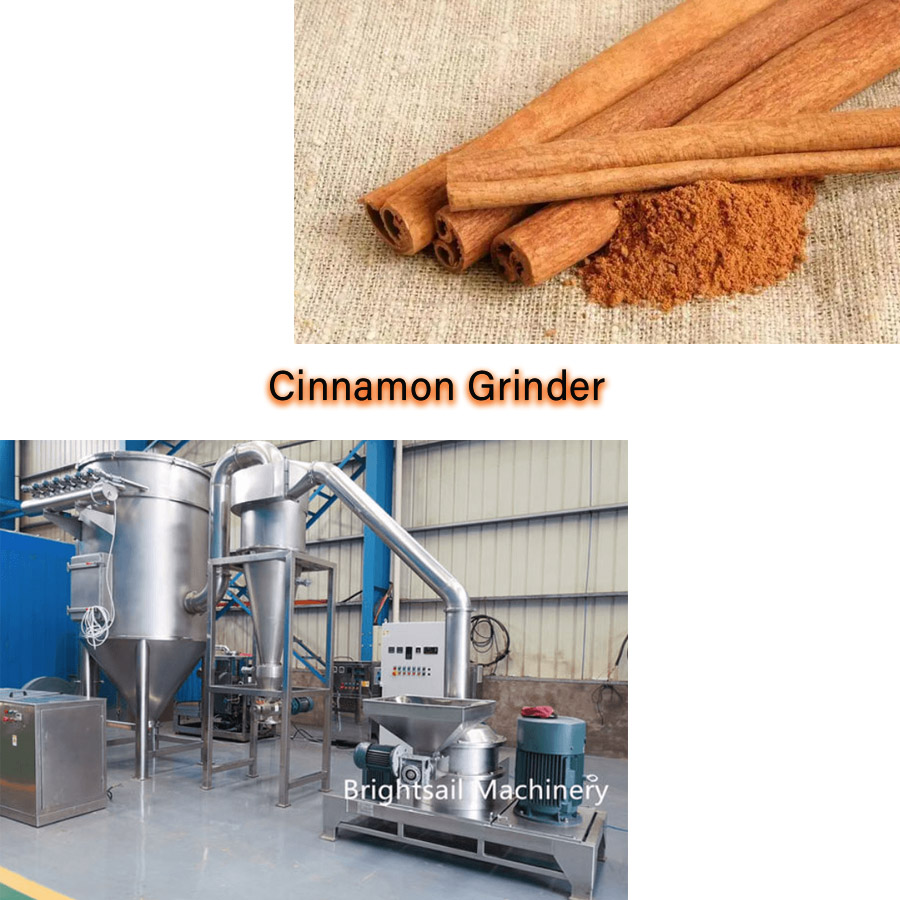

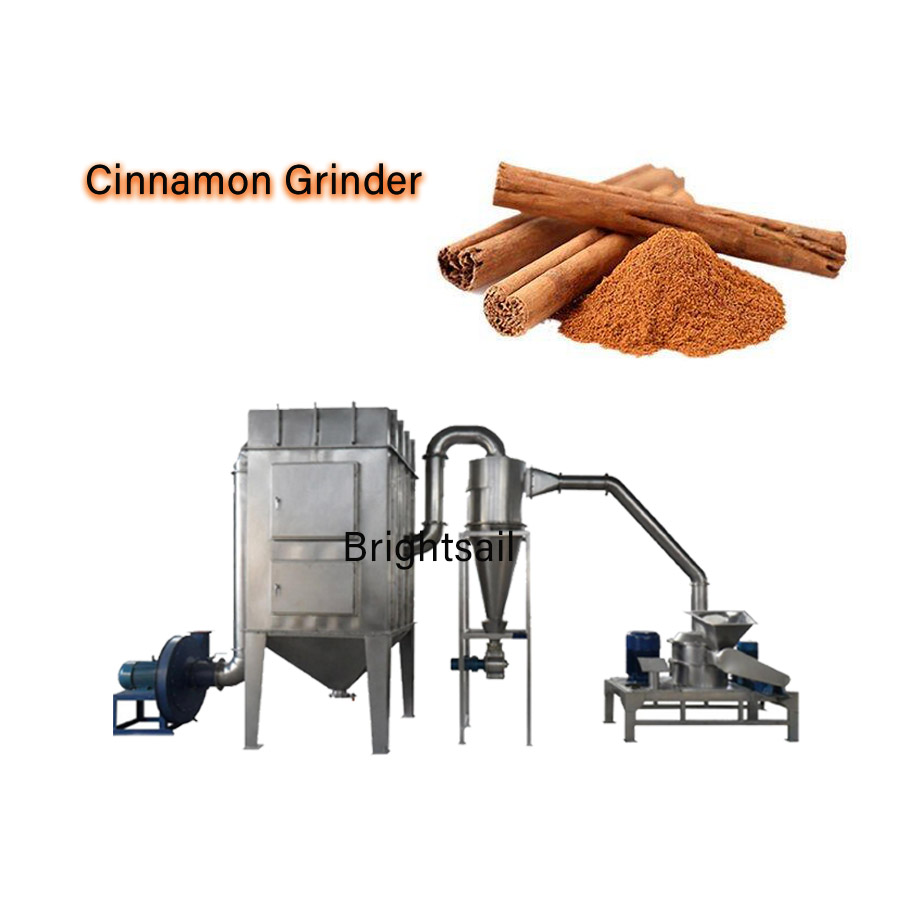

BSP cinnamon grinding mill ultra-fine particle mill Brightsail micron powder pulverizer machine for milling cinnamon the output size can be 60~1000 mesh fine powder.

Technical Data:

Model	BSP-250	BSP-350	BSP-450	BSP-500	BSP-750	BSP-900	BSP-1000
Capacity(kg/h)	10-100	20-200	40-500	50-800	120-1800	800-2500	1000-3600
Input size(mm)	<8	<15	<15	<15	<15	<20	<20
Powder fineness(mesh)	60-2500	60-2500	60-2500	60-2500	60-2500	60-2500	60-2500
Crush motor(kw)	5.5	15/18.5	18.5/22	30/37	55/75	90	110
Classifier motor(kw)	1.5	1.5	4	5.5	11	15	18.5
Blower(kw)	4	5.5	11	18.5	37	45	75
Feed motor(kw)	0.37	0.55	0.55	0.75	1.5	2.2	2.2
Discharge motor(kw)	0.75	0.75	0.75	1.1	1.5	1.5	1.5
Speed of principle axis(rpm)	~8400	~6500	~5600	~4400	~3100	~2450	~2450
Classifier speed(rpm)	~4000	~4000	~4000	~3500	~3000	~3000	~3000

Brightsail ACM grinder can make 60~2500 mesh based on different raw material, for example:
For sugar and salt grinding, the output size can be 100~1000 mesh fine powder.

For spice powder like turmeric, ginger and garlic grinding, the output size can be 60~400 mesh fine powder.
For herbal leaf grinding like licorice root, moringa leaf, green tea leaf, the output size can be 60~500 mesh.
For chemical powder grinding like Lithium Stearate, Zinc Stearate, tale, the output size can be 200~10000 mesh based on customer's requests.

Q: What is the warranty term?

A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.

Q: How many countries have you exported?

A: Till 2021, we have exported machines to more than 70 countries. Including USA, European countries,Japan, South American countries,Australia,New Zealand,and lot of Middle-east Asia countries,Southeast Asian countries and Africa.

Q: Can I see the working machine in user's factory?

A: It depends, you shall contact our sales to check.

 And most companies don't allow strangers to visit their factory.

 Only a few allow,so please contact our sales to check whether it is possible.
