Usage
The industrial food crusher has two functions mainly: (1)Crush raw materials into flakes or granules like ginger granules,chili flakes,tea granules,black pepper granules,biscuit flakes,herb granules...etc (2)It is used as a primary crusher before grinding.
Working Method
Application and work method of BSC industrial food crusher:
It’s applied in food,chemical and pharmaceutical lines.
Raw material is fed into the crush chamber through the feed hopper,then crushed and cut by the fixed and rotating knives in the chamber, and flows to the exit automatically under the effect of rotating centrifugal force.
There are two type discharge way, one is side way, one is bottom way.
The discharge part can be vertical type (on the back side), and table type (on the bottom).

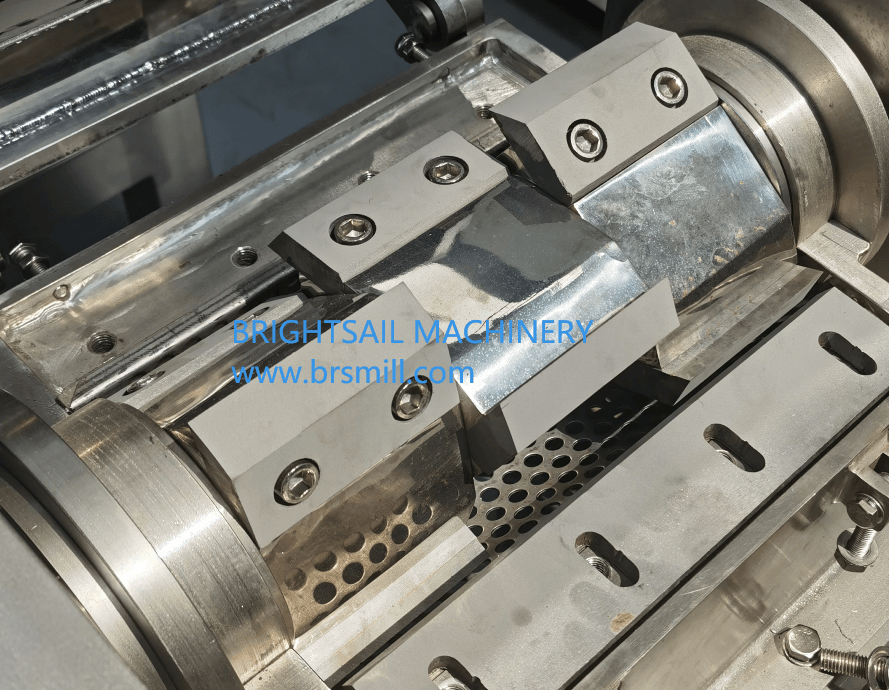

Cutter inside the mill chamber.
These are pictures of inner part of our BSC Food Coarse Particles Machine
Overall drawing of BSC Food Coarse Grains Crusher Konjac Into Granules Machine (side discharge type)
Advantages
To avoid flying dust, a filter box is optional to be connected with the crusher;For big capacity crushing, a belt conveyor machine is recommended;
Before the belt conveyor, a metal detector machine is also optional and recommended.
Technical Data
Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 | BSC-1000 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 | 1000-2500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Rotor speed (rpm) | 530 | 530 | 530 | 530 | 540 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 | 15 |
Overall Size(L*W*H) (mm)(Type B) | 600*500*1228 | 720*700*1303 | 900*700*1306 | 1020*700*1306 | 1330*850*1826 |
Weight(Kg) | 200 | 300 | 380 | 500 | 1000 |
Not only spice crusher,herbal crushing machine,
Work Video
This is video of our BSC Coarse Crusher unit for grinding chilli.
This is video of our BSC Coarse Crusher unit for grinding Leaf.
This is video of our BSC Coarse Crusher unit for grinding chilli.
