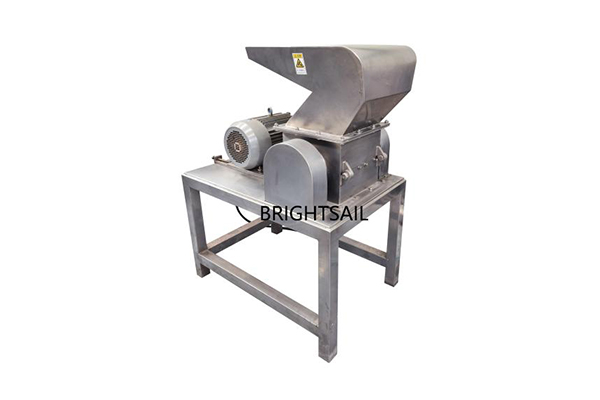

Type 1: BSC series coarse crusher
Our BSC Coarse Crushercan crush dry konjak chips into 1-5mm particles.
There are 5 models. BSC-200, BSC-300, BSC-400, BSC-600 and BSC-1000.
Capacity: 30-3000kg/h.
The size of the discharged material can be adjusted, which can be obtained by changing the screen with different apertures.
3 types:
Table type (Only Grinding host)
Joint type
Split type
Name1
Name2
BS hammer millcan grind dry konjak granules into 20-150mesh powder.
This mill has the screen, the different fineness of finished products can be got by replacing different sizes of screens.
There are 10 models. BS-8, BS-16, BS-32, BS-64, BS-200, BS-320, BS-400, BS-630, BS-880 and BS-1000.
Capacity from 10-2000kg/h.

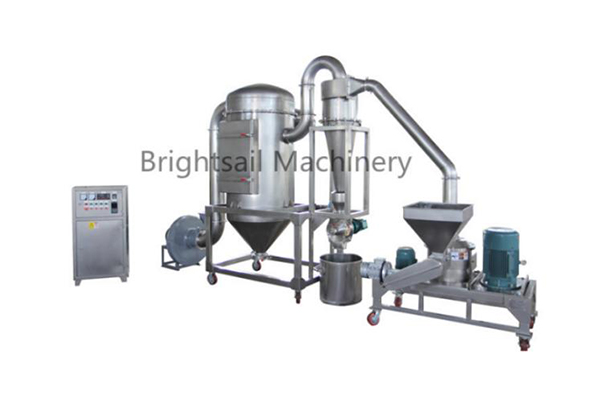

Type 3: BSP series Air Classifier Mill
Our BSPAir classifier mill can grind dry konjak granules into 80-500mesh fine powder.
This BSP Air classifier mill has no screen.
The different output sizes can obtained by adjusting the grading speed.
There are 8 models, BSP-200, BSP-250, BSP-350, BSP-450, BSP-500, BSP-750, BSP-900 and BSP-1200.
Capacity: 10-2000kg/h.
If you want 1-5mm konjak granules, BSC coarse crusher is recommended.
If you want 20-150mesh konjak powder, BS hammer mill is suitable.
If you want 80-500mesh ultra fine and smooth flour, BSP ultra fine pulverizer is suggested.
We can recommend suitable machines according to your fineness and production capacity requirements.
This is our BS spice hammer mill, it is suitable for grinding different kinds of spices, no matter it is low-oil or high-oil spice. Its capacity range is from 100 to 1000 kg/h, if you want the no dust and continuous production, or you need to expand your current production, this type grinder machine is a good choice.
BS spice hammer mill unit includes:
1) mill part
2) cyclone (discharge system)
3) dust collect system
4) blower
5) electrical control box
Mill part:
Work principle: Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.
The production process is dust-free and continuous.
There is screen in the crusher part of machine, if the powder is smaller than the screen mesh, it will pass through the screen and get out of the mill chamber by centrifuge force. If not, the powder will continue to be crushed in the mill chamber.
The BS spice grinder machine also can work with conveyor, sifter machines as the whole line to save the labor, like the picture below.
These are test videos of BS spice powder grinding machine.
In the video, we are grinding chilli and cumin seeds.
Coriander seeds are the fruit or seeds of the cilantro plant. It is widely used as a seasoning in many cuisines around the world. They are small, hard, brownish and are a must component of pickling spices. The coriander seed has a pleasant and spicy aroma.
For making coriander seeds powder, firstly we need to roast the coriander seeds by the roasting machine. When roasting, the coriander seeds will release oils that will darken the seeds and increase the strength of the flavor profile. This also helps in removing moisture that results in a longer shelf life.
This is picture of our spice roasting machine(coriander seeds roasting machine)
Once the roasted coriander seeds cool down to the room temperature, put them into the grinder machine to make coarse or fine powder. There are 2 types coriander grinding machines for your choices.
This is video of our spice roasting machine
Small type: BSU universal crusher (small capacity coriander powder machine)
For grinding dry spices with high oil content, like coriander seeds, the crusher part of BSU is better to use turbo type, or the powder may get blocked inside. There are several models of BSU coriander powder grinder machine, from 20-300 kg/h. It needs to replace the screen mesh to change output powder fineness.
This is the test video of BSU coarinder seeds grinder machine.
In the video,our customer is grinding nutmeg.
Big type: BS hammer mill (with pulse dust collecting system)
It is made up of crusher part, cyclone, pulse dust collecting box, blower and electrical control box. The capacity range of BS coariander powder making machine is from 50-1000 kg/h. It also needs the screen to change powder fineness.
It can also grind other spices, that’s why it is also called as dried turmeric and coriander grinding machine
Below is the test video of BS coriander powder grinding machine.
Our workers are loading the BS-5 screw feeder into the container,this machine will be shipped out to Canada these days.
Screw feeder is usually linked to different machines to realize the continuity of different processing steps of materials. Usually connected to shredders, packers, mixers...etc. Facilitate the delivery of materials
