Are you looking for a small hammer mill machine for your new business recently? If it is, our BS high speed hammer mill grinder is a good choice for you.
Our BS hammer mill machine is composed of three parts: frame, mill chamber and feeding part. The material is crushed by the force of hit and friction of high speed relative motion of movable cutter head, fixed gear ring and movable hammer. If the particle is smaller than the hole size of sieve, it will pass the sieve and get out of the crushing cavity. If not, the particle will continue to be crushed in the mill cavity.
This stainless steel hammer mill is widely applied in food, chemical, pharmaceutical and other industries. It has two types of knives for you to choose.
Hammer type is suitable for making dry materials into fine powder, and knife type usually work with a inverter to make dry materials into small granules/flakes.
Main features of such hammer mill stainless steel:
1) It has high grinding speed, the output size can be very fine.
2) It is easy to clean, simple in structure and few occupied space. And there are 4 wheels at the bottom, very easy to move.
3) Price is low,it can also solve the problem of tight budget.
4) The contact part of it is made of SS 304, which has good corrosion resistance.
Feedback from clients for our BS stainless steel hammer mill grinder
We have sold such machine to more than 15 countries at present, followed are several good comments from our clients for your reference.
Any interest?Please feel free to contact us,anytime is welcome!
This is video of our BS stainless steel hammer mill machine.
This is our popular small type grinder--BSU hammer mill crusher, which is widely applied in industries of food, medical, chemical...etc, such as spice, herbs, grains, crystal materials...etc.
There are different kinds of knives for BSU hammer mill machine, usually our clients choose hammer type, pinned disc type, and turbo type like the picture below.
Hammer type: It is suitable for grinding heat sensitive materials, and its output capacity is a little higher than other type knives.
Pinned disc type: It is suitable for making finer powder than other types, like for grain, herb.
Turbo type: It is suitable for grinding high oil content materials, such as coffee beans, spices (coriander, black pepper...etc).
Advantages of BSU hammer mill machine:
1. The single mill is easy to clean and operate, simple in structure and few occupied space.
2. When capacity is small, single mill machine is very suitable.
3. Price is low, it can also solve the problem of tight budget.
Here are good comments of BSU hammer mill grinder from overseas clients:
It is popular with our customers, the first company in the picture purchased the extra 2 sets BSU grinding machines with pulse dust collecting system after they used the BSU-40 hammer mill for a long time.
Finally, let’s see some test videos of BSU hammer mill crusher.
Introduction of 4 types of Ginger Powder grinding machines
We have done many ginger crushing tests according to our different customers's requests.
There are 4 types of ginger powder grinding machines, which are popular grinders that customers often buy.
Type 1: BSC series coarse crusher. (ginger crusher)
This rough mill is used to pulverize large and long raw materials into 0.5-5mm particles.
It can also be used to make chilli and onion flakes.
Our BSC series coarse crusher can crush many materials, such as various spices, ginger, turmeric, onions, cloves, rhizomes, leaves, flowers, herbs, coco cake, plastics, grains, cassava, yams...etc.
There are many models of this machine, different models have different capacity, the capacity is from 30-5000kg/h.
The size of the discharged material can be adjusted, which can be obtained by changing the screen with different apertures.
Type 2: BSP ACM grinder (ultra fine ginger powder grinding machine)
Ultra Fine Pulverizer, its another name is Air Classifier Mill or ACM grinder.
This mill is used to make fine powders from 50 mesh to 1000 mesh.
This grinder is very suitable for crushing ginger, herbs, roots, leaves and other highly fibrous materials. The crushing effect is very nice after customer feedback! After testing, ginger crushed, 120 mesh above, the yield is 100%, and the particle size distribution is very perfect!
If you want the coarse ginger powder, you can reduce the grading speed,
and if you want a finer finished products, you can increase the grading speed. In short, the higher the grading speed, the finer the finished product.
Our ACM Mill has no screen, the different output sizes can be obtained by adjusting the grading speed.
This pulverizer has a grading wheel inside, that is, the grading system, so there is no need for a vibrating screen machine.
Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.
This pulverizer can work continuously for 24 hours, producing no dust flying.
For food industry, it can crush various spices, grain, peas, sugar, herbs, leaves, root, flowers, kelp, seaweed, mushroom, vegetable, cocoa, coffee and other materials.
There are many models, and different models have different capacities.
Capacity from 10kg/h to 5000kg/h.
The feed size of BSP Micro Pulverizer is required to be less than 10mm, so BSC coarse crusher is the supporting equipment for the previous process of micro-grinding processing.
This is video of our ginger powder grinding machine
(In this video, you can see our BSC crusher to crush the ginger firstly, then feed the ginger granules into ginger powder by our BSP ginger powder grinder machine)
Type 3: BSG series universal grinder Unit (ginger powder making machine grinder)
If your fineness requirements are not high, such as ginger powder of 40 mesh or 60 mesh above,
if you want continuous production, large production capacity and low cost, you can consider this, which is high quality and good price.
Our BSG series universal crusher can grind many materials, such as, spices, grain, sugar, peas...etc to 20-120mesh.
This universal grinder has screen, the different fineness of finished products can be got by replacing different sizes of screens.
Capacity from 100-5000kg/h.
This is video of our BSG ginger powder processing machine
There are 3 main differences between this BSG series universal grinder and BSP series Ultra Fine Pulverizer:
1. The method of fineness of the finished product is different.
BSG universal grinder has screen, the different fineness of finished products can be got by replacing different sizes of screens.
BSP Ultra Fine Pulverizer has no screen, the different output sizes can be obtained by adjusting the grading speed.
The fineness adjustment of BSP mill is more convenient, more scientific and more controllable.
2. The range of powder fineness is different.
BSG: 20-120 mesh;
BSP: 60-1000 mesh; BSP mill has a wider range of fineness of finished products. You can get more rich fineness of products.
3. Different the rate of finished products.
There is a screen inside the BSG, and many materials are elastic. During the crushing process, the coarse powder will be forced to squeeze through the screen holes.
Fine powder will occupy a large proportion and about 85-90% (The yield varies with different materials and different fineness requirements.),
but there will be a small amount of coarse powder, so this pulverizer is often used with a vibrating sieve machine.
A vibrating sieve can separate a small amount of coarse powder from fine powder.
For most materials, the yield of BSP mill is 100%, because it has an internal grading system.
Type 4: BS series hammer mill (small ginger powder grinding machine)
If your capacity requirement is small, 3-200kg/h, BS series hammer mill is recommended.
It can grind dry ginger to 40mesh and 60mesh above.
This hammer mill is very suitable for various spices grinding with 20-120mesh.
The crushing part can only work for about 5 hours, and the machine needs to rest for 30 or 60 minutes before it can continue to work.
If you want continuous production, you can add cyclone and dust removal box on the basis of crushing part.
BS hammer mill unit has compact structure with small floor area, and it can be continuous production and there is no dust flying.
This is video our BS hammer mill- machine make ginger powder
Summary about Ginger Powder Processing Machine -Ginger Powder Grinding Machine
About ginger powder grinding:
1) If you want to crush dry and large ginger slices into 1-5mm particles, BSC coarse crusher is recommended.
2) If you want 100-500 mesh superfine powder and want continuous production, BSP Ultra Fine Pulverizer Unit is very suitable.
3) If your fineness requirement is not high, 20-120 mesh, and you want cost saving and good price and big capacity and continuous production, you can consider BSG universal grinder unit.
4) If the production capacity is small and the fineness requirement is 20-120 mesh, BS hammer mill is recommended.
This is the good feedback from our Australian customer,about our BSR-1500 ribbon blender.
BSR ribbon mixer is widely used in solid-solid(powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry, pharmacy, foodstuff industries.
The complete chili powder line machines for building up the chili plant, followed are the brief introduction of the whole line machines.
Step 1: Chili Washing--Chili washing machine/Chilli clean machine
Bubble washing machine adopts the bubble surfing and spraying technology for chili washing. It is an indispensable washing device for the chilli.
Step 2: Chilli drying -- Chilli drying machine
This is our BSO series chili drying machine, great part of hot wind is circulated in the oven with high thermal efficiency.
The red chili can be well dried by the chili dryer.
1)The first machine is for making chilli falkes. it is chili flake machine
2)Many different types and models of chili grinders are in supply to meet different demand in output size and capacity.
3)The other machines are our different chilli powder grinding machines.
4)For small capacity,midium capcaity and big capacity chilli powder grinder, we have different solutions.
5)The capacity range can be 20~1000 kg/hr per machine.
What below is video of our big capacity chilli powder grinder machine for your reference.
This video you can see our chilli flake machine
Step 4:Chilli power packing--chili powder packing machine/ chilli powder filling machine
The last part is the chili packing step, chili packing machine would help to pack chili flakes/powder into the designed bags.
Then you can sell the chili products on the market.For different packages, the suitable chili packing filling machine is different. We supply various packing machines for you to choose.
This video is one of our spice powder filling machine for your reference.
If you need to set up a chilli grinding machine/ chili powder plant,the four main devices are required.
Each type has different types and models, please share me the following details if you feel interest:
1)How many fresh chili you need to process per hour?
2)The required chili output size
3)The packing part: the packing material you use(bag, jar, etc), the packing size, pack weight, pack speed
Want to get a quote for chilli powder machines? Contact Us.

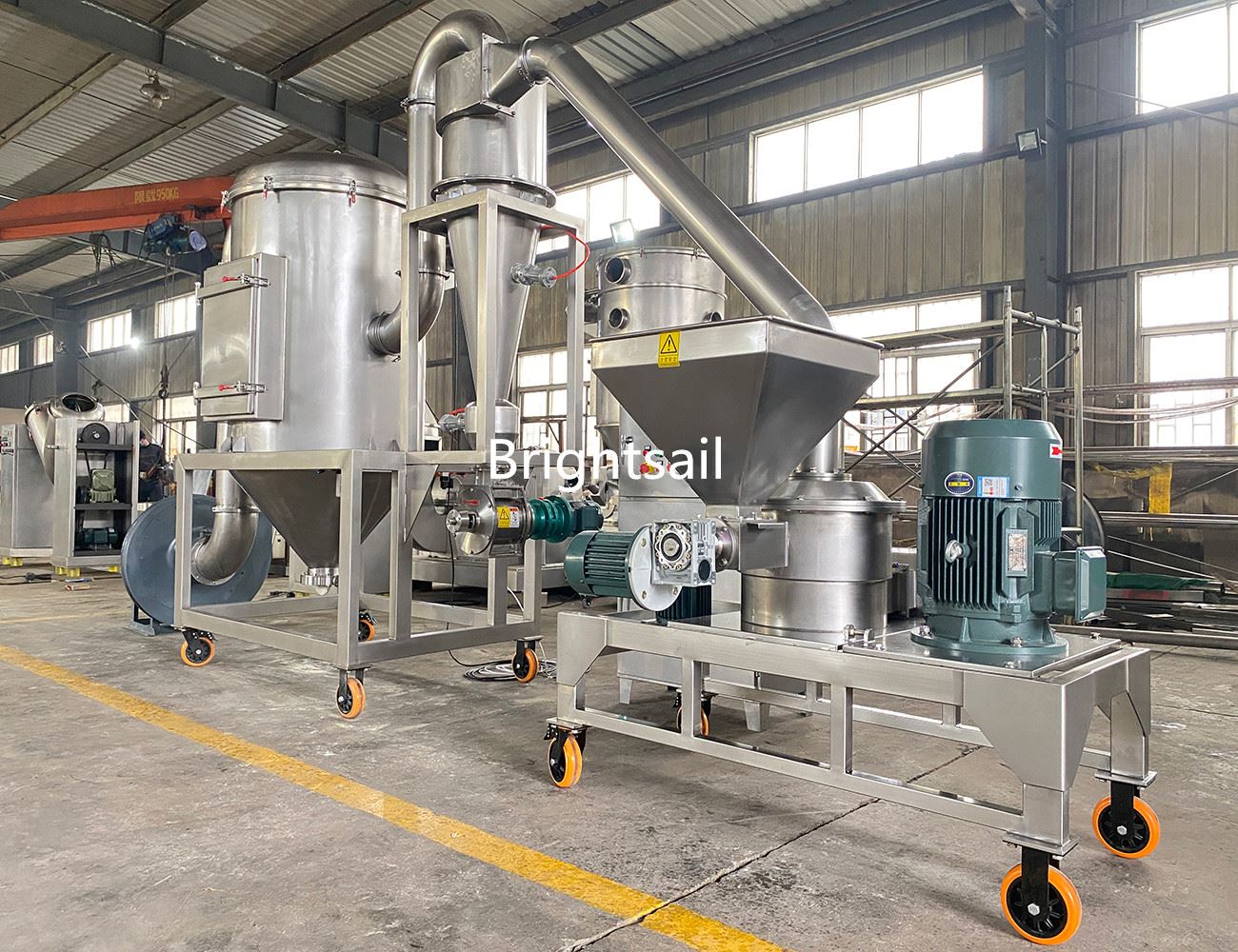

BSP-450 air classifier mill has been customized to the Canadian customer's requirements.
This grinder Has a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh.
Video link:https://www.youtube.com/watch?v=GpHqLrtWwFU
One more set of BSF-16 high efficient mill gets ready,the client will use it to make leaf granules.
This machie is developed with the method of mixed powder jetting, which is widely applied for the materials grinding for the trades of pharmaceutics,chemical,and foodstuff etc.
Click the link below,you can know how it make rice powder.
how to make Carob Powder - Carob Processing Machine
Carob powder is a common ingredient in desserts and baked goods and can act as a substitute for cocoa powder.
High in fiber and low in fat, carob powder contains calcium and antioxidants.
People use the pulp/pod to make carob powder, which has an earthy taste similar to chocolate.
Carob powder comes from the sweet, ripe pulp of carob pods.
People dry, roast, and grind the carob pulp to produce a fine powder or flour.
How to make carob powder from dried carob?
Firstly, use Carob Seeds Remover/(Carob Seeds Cleaning Machine) to remove the seeds,
and it can break the carob pulp/pod at the same time.
Carob powder can be either raw or roasted.
Lightly roasted is sweeter than dark-roasted powder, which has a more bitter, intense taste.
It depends on customers' requirements.
If need roasted carob powder, please put carob pulp/pod into our BSCZ Carob Roasting Machine to roast it.
If need raw powder, then no need the roasting machine, please move the the last step.
This is video of our Carob Seeds Cleaning Machine
At last, you can use our carob powder grinder machine to grind the carob pulp/pod into fine powder.
Usually customer need like 200 mesh carob powder.
It is a good replacement for hot caffeinated beverages, such as hot cocoa or coffee.
Carob powder is ideal for people who want to avoid the stimulating effects of cocoa or reduce the amount of sugar in certain recipes.
People who are sensitive to gluten can use carob powder in place of rye, wheat, or barley flour for bread and baked goods.
If you have any interest about the carob powder processing machines,
please don't hesitate to contact us.
