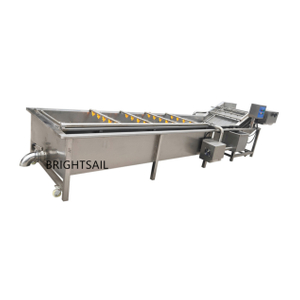

BSQP Air Bubble Washing Machine

Availability:
Quantity:
  • BSQP
  • Brightsail

Introduction

The BSQP is suitable for stem, leaf and stem vegetables and all kinds of fruits. Its operation principle is that the vegetables and fruits in the water tank will be continuously washed by the high-pressure rolling bubbles driven by the net chain. With the action of the rotary brush, the water in the water tank will be further cleaned by spraying after repeatedly flushing the water. The water in the water tank is filtered by the auxiliary water tank and fed into the water tank through the pipeline pump. If it is necessary to disinfect, one can be added in the water tank Fixed concentration of disinfectant can also be heated by steam.


气泡清洗机实物图1_ABC看图_副本

Features

1.High pressure air bubble and spraying water can wash off dirt, sands and other residues

2.Equipped with VFD to better adjust the belt speed

3.Equipped with separate filter tank and water recycling system
4.Equipped with spraying section with clean water for twice washing The objects are automatically conveyed to spraying section by the conveyor mesh belt.


Detailed Image

气泡清洗机实物图6_ABC看图_副本

Advantages

1. Mufti-function, wide application, will not hurt products.

2. Mesh belt conveying , speed adjustable. washing machine.

3. With secondary spray system and water recycling system, saving water.

4. Can add ozone and ultrasonic generator. washing machine.

5. The bearings are imported stainless steel bearings to make energy saving.


Techniclal Data

Model

BSQP-3500

BSQP-4000

BSQP-5000

Overall dimension (mm)

3500*1400*1350

4000*1600*1350

5000*1600*1350

Power (kw)

4.07

4.87

5.25

Belt width (mm)

600

800

800

Net weight of equipment (kg)

360

500

700

Capacity (kg / h)

about750

about1250

about1750

speed

frequency control
